Cần cài đặt các packages sau đây cho hệ
điều hành trước khi tiến hành các bước
tiếp theo:
- GNOME
Desktop Environment
- Editors
- Graphical
Internet
- Text-based
Internet
- Development
Libraries
- Development
Tools
- Server
Configuration Tools
- Administration
Tools
- Base
- System
Tools
- X Window System
1.
Add
host
[root@localhost
~]# vi /etc/hosts
[root@localhost
~]# vi /etc/sysconfig/network
2.
Chỉnh
sửa kernel
[root@ora1 softs]# vi /etc/sysctl.conf
Add thêm các dòng sau:
#Oracle
fs.suid_dumpable = 1
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 536870912
kernel.shmmni = 4096
# semaphores: semmsl, semmns, semopm,
semmni
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000
65500
net.core.rmem_default=4194304
net.core.rmem_max=4194304
net.core.wmem_default=262144
net.core.wmem_max=1048586
Kiểm tra lại các tham số:
/sbin/sysctl
-a | grep <param-name>
Apply các tham số vừa gán:
/sbin/sysctl
-p
[root@ora1
softs]# vi /etc/security/limits.conf
Add các dòng sau:
oracle soft nproc
2047
oracle hard nproc
16384
oracle soft nofile
1024
oracle hard nofile
65536
oracle soft stack
10240
Disable secure linux:
[root@ora1
softs]# vi /etc/selinux/config
SELINUXTYPE=disabled
3.
Cài
đặt các gói cần thiết cho việc cài đặt
Oracle
#
From Oracle Linux 5 DVD
cd
/media/cdrom/Server
rpm
-Uvh binutils-2.*
rpm
-Uvh compat-libstdc++-33*
rpm
-Uvh compat-libstdc++-33*.i386.rpm
rpm
-Uvh elfutils-libelf*
rpm
-Uvh gcc-4.*
rpm
-Uvh gcc-c++-4.*
rpm
-Uvh glibc-2.*
rpm
-Uvh glibc-common-2.*
rpm
-Uvh glibc-devel-2.*
rpm
-Uvh glibc-headers-2.*
rpm
-Uvh ksh*
rpm
-Uvh libaio-0.*
rpm
-Uvh libaio-devel-0.*
rpm
-Uvh libgomp-4.*
rpm
-Uvh libgcc-4.*
rpm
-Uvh libstdc++-4.*
rpm
-Uvh libstdc++-devel-4.*
rpm
-Uvh make-3.*
rpm
-Uvh sysstat-7.*
rpm
-Uvh unixODBC-2.*
rpm
-Uvh unixODBC-devel-2.*
rpm
-Uvh numactl-devel-2*
rpm
-Uvh compat-db-*
cd
/
eject
Cai
them cac goi nay:
elfutils-libelf-0.137-3.el5.i386.rpm
elfutils-libelf-devel-0.137-3.el5.i386.rpm
elfutils-libelf-devel-static-0.137-3.el5.i386.rpm
libXp
4.
Tạo
user oracle và các groups
groupadd
oinstall
groupadd
dba
groupadd
oper
groupadd
asmadmin
useradd
-g oinstall -G dba,oper,asmadmin oracle
passwd
oracle
5.
Tạo
user kết nối đến DB để tạo Repository
Creation Utility
[root@ora1
data1]# su - oracle
[oracle@ora1
~]$
[oracle@ora1
~]$ sqlplus / as sysdba
SQL*Plus:
Release 11.2.0.3.0 Production on Tue Sep 25 04:16:55 2012
Copyright
(c) 1982, 2011, Oracle. All rights
reserved.
Connected
to:
Oracle
Database 11g Enterprise Edition Release 11.2.0.3.0 - Production
With
the Partitioning, OLAP, Data Mining and Real Application Testing options
SQL>
SQL>
create user obiadmin identified by Aa123456 account unlock;
User
created.
SQL>
grant sysdba to obiadmin;
Grant
succeeded.

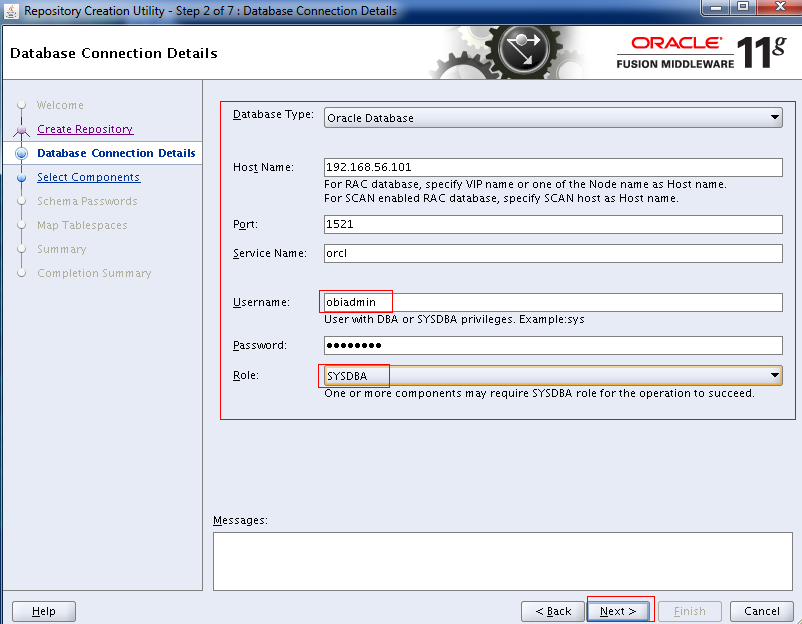

6. Setup
OBI Repository Creation Utility
[root@ora1
rcuHome]# cd /data2/softs/OBI/rcuHome/bin/
[root@ora1
bin]# ./rcu
7. Setup
Oracle BI EE
[oracle@ora1
bin]# cd /data2/softs/OBI/bishiphome/Disk1/
[oracle@ora1
Disk1]# ./runInstaller
[oracle@ora1
Disk1]# cd /data3/
[oracle@ora1
Disk1]# mkdir OBI
8. Start/Stop
BI Services
[oracle@ora1
bin]# vi /data3/OBI/user_projects/domains/bifoundation_domain/servers/bi_server1/security
[oracle@ora1
Disk1]# ./runInstaller
[oracle@ora1
Disk1]# cd /data3/
[oracle@ora1
Disk1]# mkdir OBI
Tạo
file boot.properties trong thư mục /data3/OBI/user_projects/domains/bifoundation_domain/servers/bi_server1/security
Edit file và
add 2 dòng sau:
username=weblogic
password=Password
Trong
đó, Password là pass đã tạo cho user weblogic.
Copy
file boot.properties vào thư mục /data3/OBI/user_projects/domains/bifoundation_domain/servers/AdminServer/security
Làm bước
này để ko phải đăng nhập trong quá trình
start/stop services
Scripts to stop/start Services:
File
cấu hình biến môi trường (tham khảo)
export
ORACLE_BASE=/data3/OBI
export
ORACLE_HOME=$ORACLE_BASE/Oracle_BI1
export
TNS_ADMIN=$ORACLE_HOME/network/admin
export
ORACLE_SID=orcl
export
PATH=$ORACLE_HOME/bin:$PATH
Toàn bộ scripts dùng để
start/stop services
[root@GS-DW-APP2
scripts]# ll
total
3084
-rwxr-xr-x
1 oracle oinstall 79 Feb 29 2012
1_Start_WebLogic.sh
-rwxr-xr-x
1 oracle oinstall 54 Feb 29 2012
2_Start_Opmn.sh
-rwxr-xr-x
1 oracle oinstall 97 Feb 29 2012
3_Start_BI_Server.sh
-rwxr-xr-x
1 oracle oinstall 96 Feb 29 2012
4_Stop_BI_Server.sh
-rwxr-xr-x
1 oracle oinstall 53 Feb 29 2012
5_Stop_Opmn.sh
-rwxr-xr-x
1 oracle oinstall 78 Feb 29 2012
6_Stop_WebLogic.sh
-rwxr-xr-x
1 oracle oinstall 175 Mar 2 2012 BIenv
-rw-------
1 root root 3112133 Sep 19 09:51 nohup.out
drwxr-xr-x
2 oracle oinstall 4096 Aug 22 23:55 PROD
-rwxr-xr-x
1 oracle oinstall 87 Mar 2 2012
Start_OBI_Services.sh
-rwxr-xr-x
1 oracle oinstall 84 Mar 2 2012
Stop_OBI_Services.sh
[root@GS-DW-APP2
scripts]# cat 1_Start_WebLogic.sh
sh
$ORACLE_BASE/user_projects/domains/bifoundation_domain/bin/startWebLogic.sh
[root@GS-DW-APP2
scripts]# cat 2_Start_Opmn.sh
$ORACLE_BASE/instances/instance1/bin/opmnctl
startall
[root@GS-DW-APP2
scripts]# cat 3_Start_BI_Server.sh
sh
$ORACLE_BASE/user_projects/domains/bifoundation_domain/bin/startManagedWebLogic.sh
bi_server1
[root@GS-DW-APP2
scripts]# cat 4_Stop_BI_Server.sh
sh
$ORACLE_BASE/user_projects/domains/bifoundation_domain/bin/stopManagedWebLogic.sh
bi_server1
[root@GS-DW-APP2
scripts]# cat 5_Stop_Opmn.sh
$ORACLE_BASE/instances/instance1/bin/opmnctl
stopall
[root@GS-DW-APP2
scripts]# cat 6_Stop_WebLogic.sh
sh
$ORACLE_BASE/user_projects/domains/bifoundation_domain/bin/stopWebLogic.sh
[root@GS-DW-APP2
scripts]#
[root@GS-DW-APP2
scripts]# cat Start_OBI_Services.sh
nohup
./1_Start_WebLogic.sh &
nohup
./2_Start_Opmn.sh &
nohup
./3_Start_BI_Server.sh &
[root@GS-DW-APP2
scripts]# cat Stop_OBI_Services.sh
nohup
./4_Stop_BI_Server.sh &
nohup
./5_Stop_Opmn.sh &
nohup
./6_Stop_WebLogic.sh &
Chỉ
cần chạy script Start_OBI_Services.sh để start
all services
Và
script Stop_OBI_Services.sh để stop all services.
9.
Kiểm tra
các services
Để bước
đầu làm quen với OBI,
có thể tham khảo tutorial tại đây:
